Customized Electric Motor Winding Machine , Alternator Winding Machine
-
Làm nổi bật
customized electric motor winding machine
,alternator winding machine with warranty
,electric motor winding machine for alternators
-
TênMáy quấn dây phần ứng động cơ điện
-
Tốc độ không tải1500r/phút
-
Phi công200mm
-
Số chuyển khoản2-6 chiếc
-
Kích thước(L)1500*(W)1200*(H)2100mm
-
đầu cuộn8 chiếc
-
Áp suất không khí≥0,45MPa
-
Khoảng cách chuyển≥170mm
-
lớp tự độngBán tự động
-
tùy chỉnhtùy chỉnh
-
Nguồn gốcTrung Quốc
-
Hàng hiệuSMT
-
Chứng nhậnISO9001/SGS
-
Số mô hìnhSMT-DR08
-
Số lượng đặt hàng tối thiểu1 bộ
-
Giá bánCó thể đàm phán
-
chi tiết đóng góiHộp gỗ dán hoặc chỉ làm theo yêu cầu của bạn.
-
Thời gian giao hàng29-58 ngày
-
Điều khoản thanh toánT/T, L/C
-
Khả năng cung cấp1 cái / 29-58 ngày

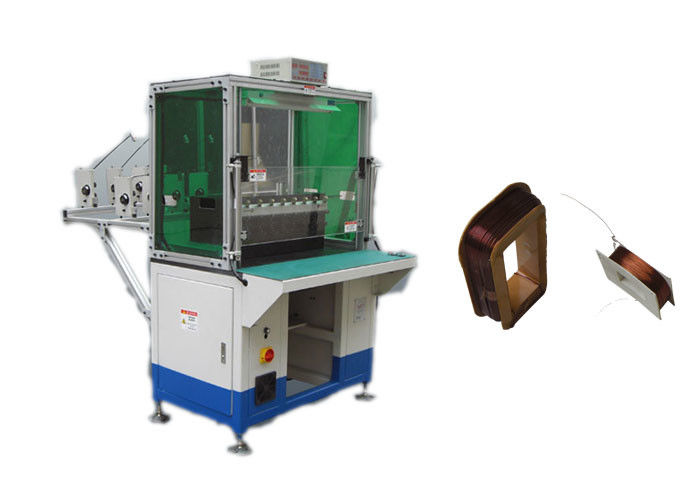

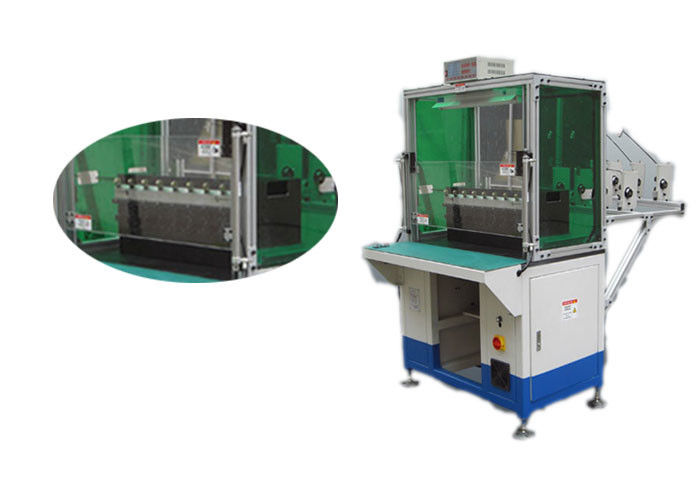

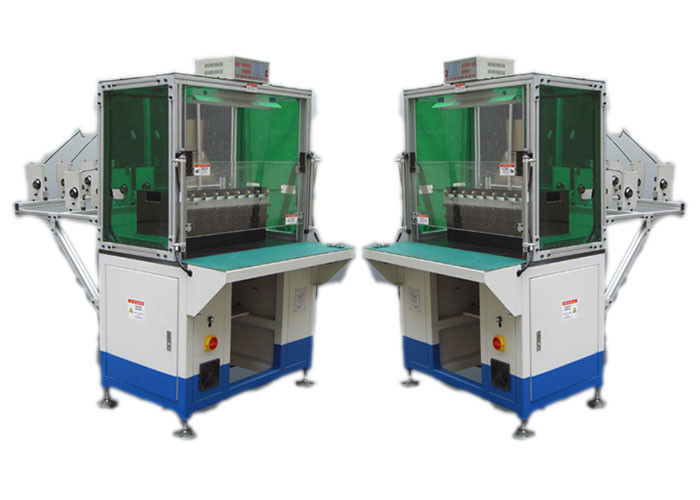

Customized Electric Motor Winding Machine , Alternator Winding Machine
Customized Electric Motor Winding Machine, Alternator Winding Machine
Information Required for Rotor Production Line Inquiry
For optimal customization, please provide detailed drawings including:
- Rotor lamination drawing
- Rotor assemble drawing
- Rotor stack drawing
- Rotor winding diagram drawing (including wire diameter and turn number)
- Commutator drawing
- Shaft drawing
- Required residual unbalancing volume and initial unbalancing volume
- Wedge and insulation paper material specifications
- Required productivity
- Other technical requirements
Providing physical samples is recommended for best results.
Main Technical Parameters
| Model | DR08 |
|---|---|
| Wire Diameter | 0.08-0.8mm |
| No-load Speed | ≤3000r/min |
| Winding Head | 8pcs |
| Diameter of Frame | 20-120mm |
| Max. Transfer Distance | ≤250mm |
| Air Pressure | ≥0.4MPa |
| Power Supply | 220V/50/60Hz 0.75Kw |
| Weight | 850kgs |
| Dimension | (L)1500*(W)1200*(H)2100mm |
Operation Process
Approximate production capacity: 1000 pieces/8 hours (varies based on armature slots and turn number).
1. Operator manually loads armature onto shuttle
2. Press START button initiates automatic process
3. Shuttle delivers armature to winding position
4. Machine performs automatic winding, indexing, and wire cutting
5. Shuttle returns finished armature
6. Operator unloads completed armature
Machine Features
Winding Tooling: Each machine includes one set of winding tooling with three vertical winding forms (changeover time ≈15min)
Turntable: Two-station structure with servo-controlled rotation and indexing
Multi-wire Capability: Simultaneous winding of up to three wires
Precision Control: Servo-controlled main spindle ensures ±1 turn accuracy
Adjustable Parameters: PLC controls turn number, speed, tooling height/speed, and winding direction
Wire Management: Servo-controlled X/Y spindles for precise bridge/lead wire adjustment
Safety Features: Automatic stop when wire runs out; no enamel damage or wire snap
Tooling Sunk: Servo-controlled with maximum 6 segments
OEM/ODM Capabilities
Our expertise in electric motor manufacturing combines experienced engineers, skilled professionals, advanced equipment, and strict process control to deliver optimized solutions. Our machines are exported worldwide (USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran) and are renowned for their durability, reliability, competitive pricing, and excellent after-sales service.
Production Line Services
We provide comprehensive technical consulting and turn-key project services for AC/DC/BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete production line solutions.
About Smart
Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment design, production, and sales. With 150 employees (including 30+ engineers), 20,000m² facility, and advanced production/test equipment, we deliver complete production lines (from coil winding to final stator forming) for various motor types. Certified by ISO9001:2000 Quality Management System since 2012.
