Submersible Pump Motor Stator Coil Winding Inserting Machine 3.5Kw

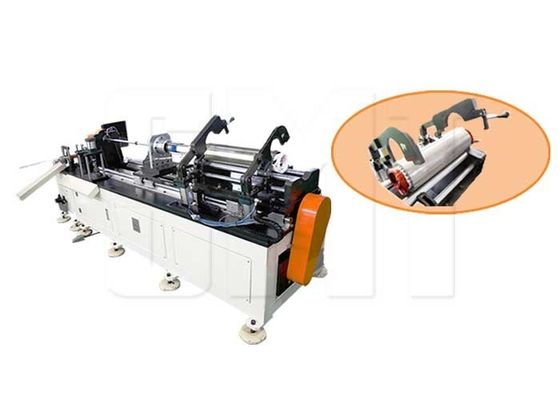

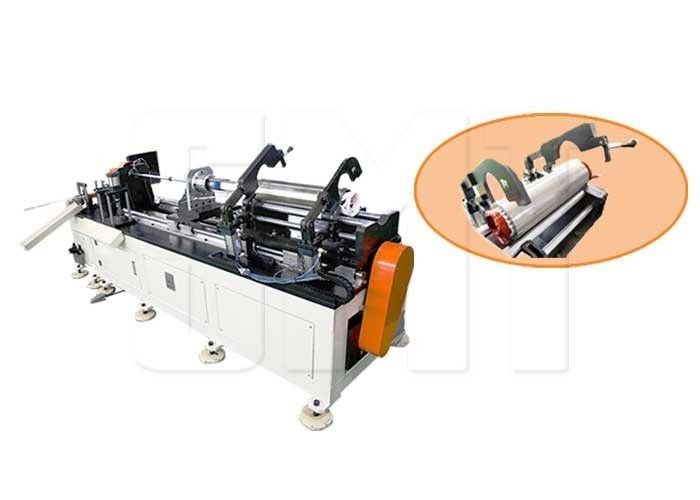

This horizontal type semi-automatic winding inserting machine features Mitsubishi AC servo motor and pneumatic element system drive. Controlled by PLC and equipped with X and Y spindle auto feeding device, it automatically inserts coil and wedge into stator slots simultaneously.

Designed for deep water pump motors and various types of overlength motor stators.

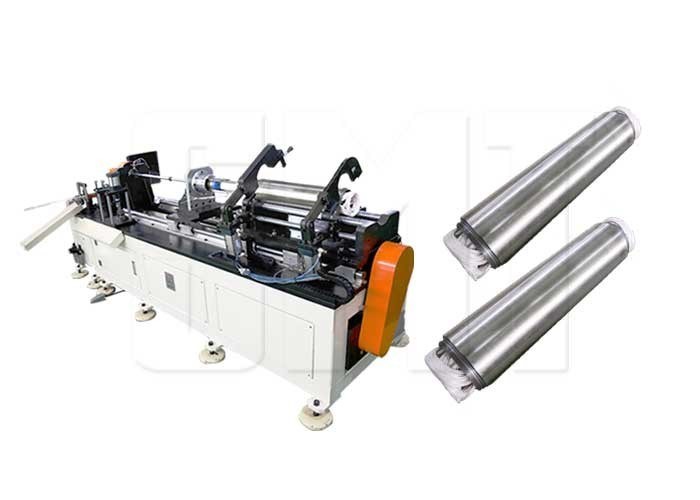

The coil insertion process is critical in stator manufacturing. Our machine features high-quality, durable insertion tools and performs gang control of inserting main shaft, wedge paper feeding shaft, and wedge magazine indexing shaft through PLC control system. It completes enamelled wire insertion, slot wedge cutting/moulding, and wedge insertion in one operation, offering even wire push torque, stable wedge moulding, and high production efficiency.

We provide comprehensive motor manufacturing services including AC/DC/BLDC motor technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training.

Suzhou Smart Motor Equipment Manufacturing Co., Ltd is a high-tech enterprise specializing in motor manufacturing equipment. With 150 employees including 30+ engineers, 20,000m² facility, and advanced production equipment, we design complete stator production lines for various motor types. ISO9001:2000 certified since 2012.
