| MOQ: | 1 bộ |
| Giá: | Có thể đàm phán |
| Bao bì tiêu chuẩn: | Hộp gỗ dán có túi niêm phong |
| Thời gian giao hàng: | 32 - 51 ngày |
| Phương thức thanh toán: | T/t, l/c |
| năng lực cung cấp: | 1 chiếc / 32 - 51 ngày |

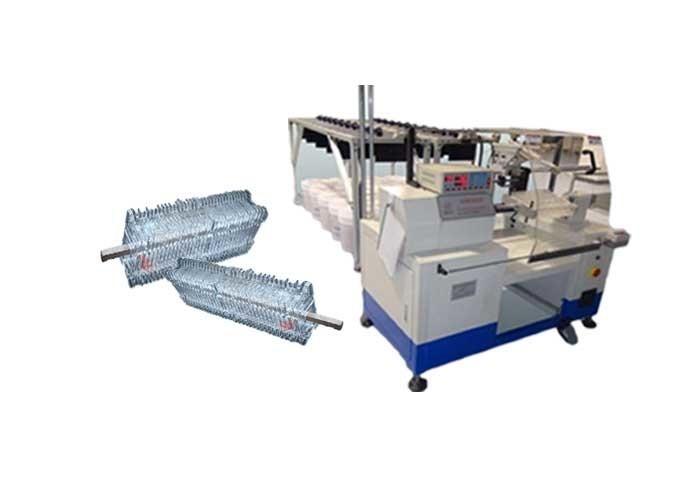

Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding applications including alternators, servo motors, and three phase motors. The machine features a specialized controller with programmable functions for arraying direction, winding start point, slow starting/ending, side stops, auto width adjustment, and auto reset.
| Parameter | Value |
|---|---|
| Swing diameter | ≤350mm |
| Effective length of tooling | ≤400mm |
| Parallel wire number | ≤16 pcs |
| Wire diameter | 0.2~1.5mm |
| Max RPM | 1600RPM |
| Power supply | 220V/50/60Hz 1.5Kw |
| Air pressure | 0.4~0.6MPa |
| Machine Weight | 900Kg |
| Machine Dimension | 1550mm*1250mm*1550mm |
|
|
